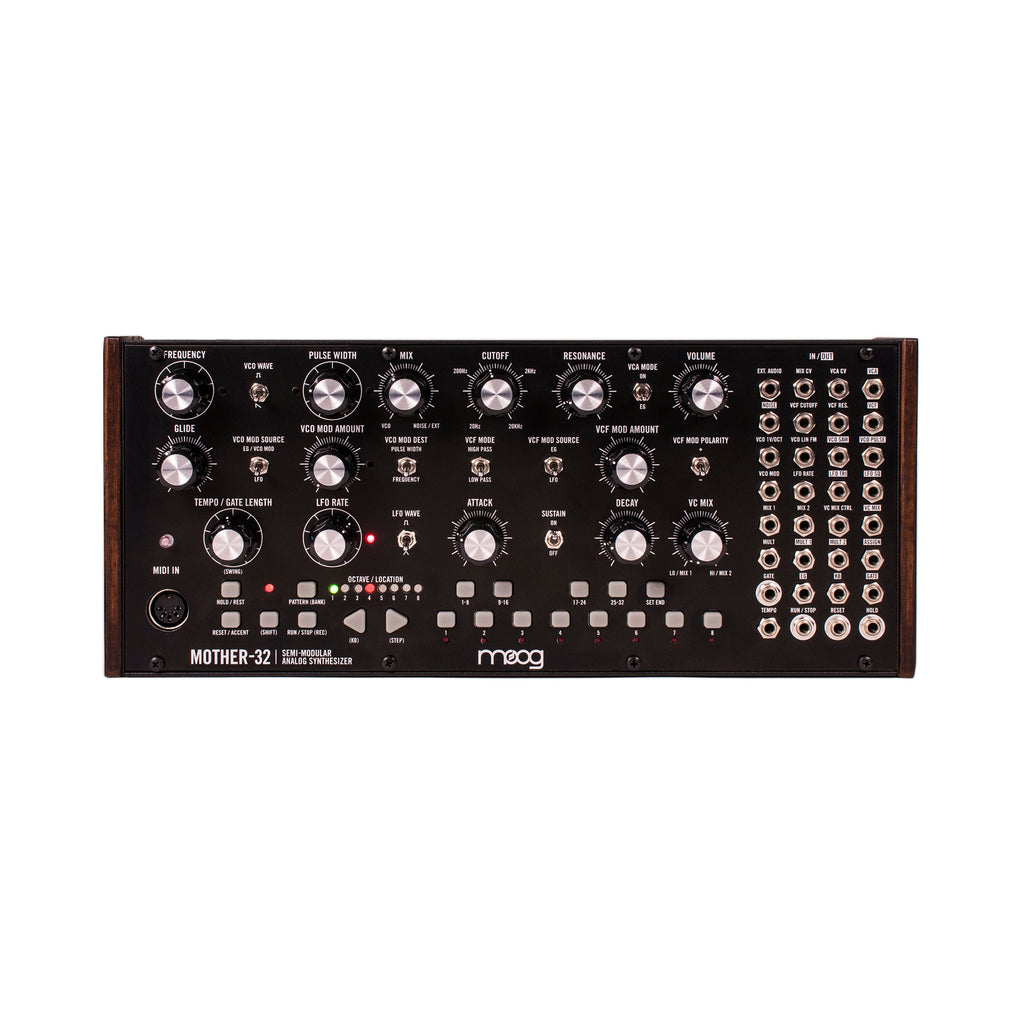

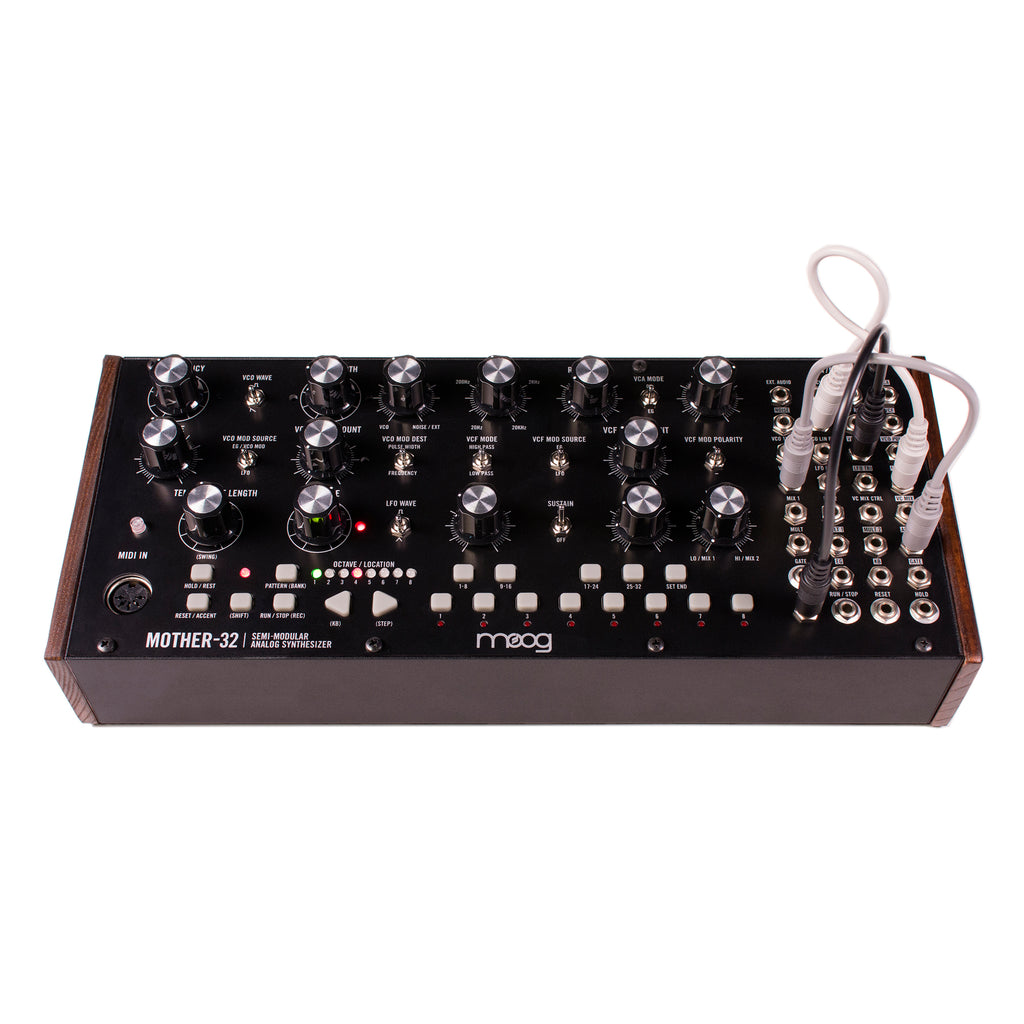

The Mother-32 is a distinctive analog instrument that brings raw sound, step-sequencing and extensive interconnectivity to any electronic or modular ecosystem. This expansive live performance and production synthesizer is designed to provide experimental musicians and synthesists with a diverse array of creative tools to inspire new ideas, unique sound and endless sonic exploration. Drive synchronized sound with Mother 32’s powerful step sequencer while utilizing its modular patch bay and assignable output to spawn a living, breathing organism with dynamic and modifiable sound processing. Patch multiple control and sound sources into Mother-32’s voltage-controlled mixers and truly unlock the vast potential of this powerful instrument, or pull all of the patch cables, plug in a MIDI cable and simply drive your Mother-32 from any MIDI-equipped device.

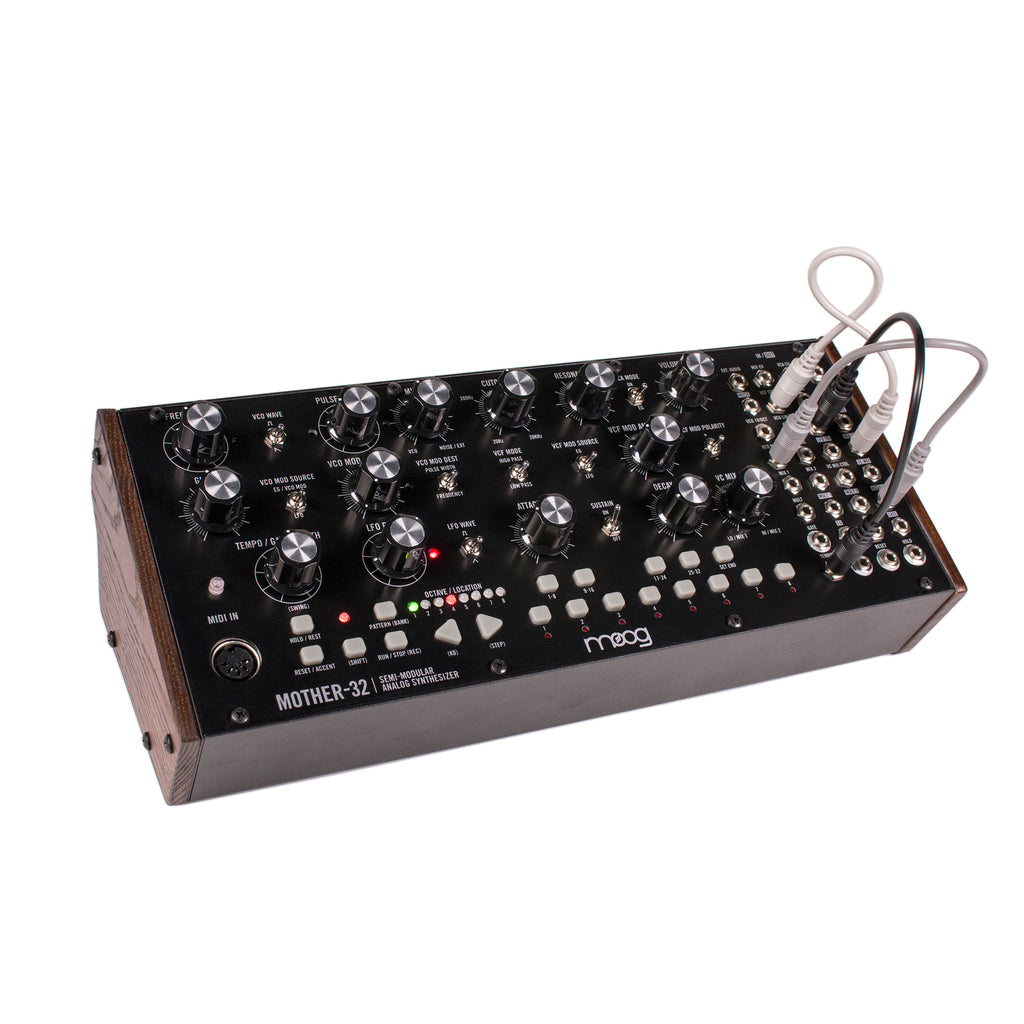

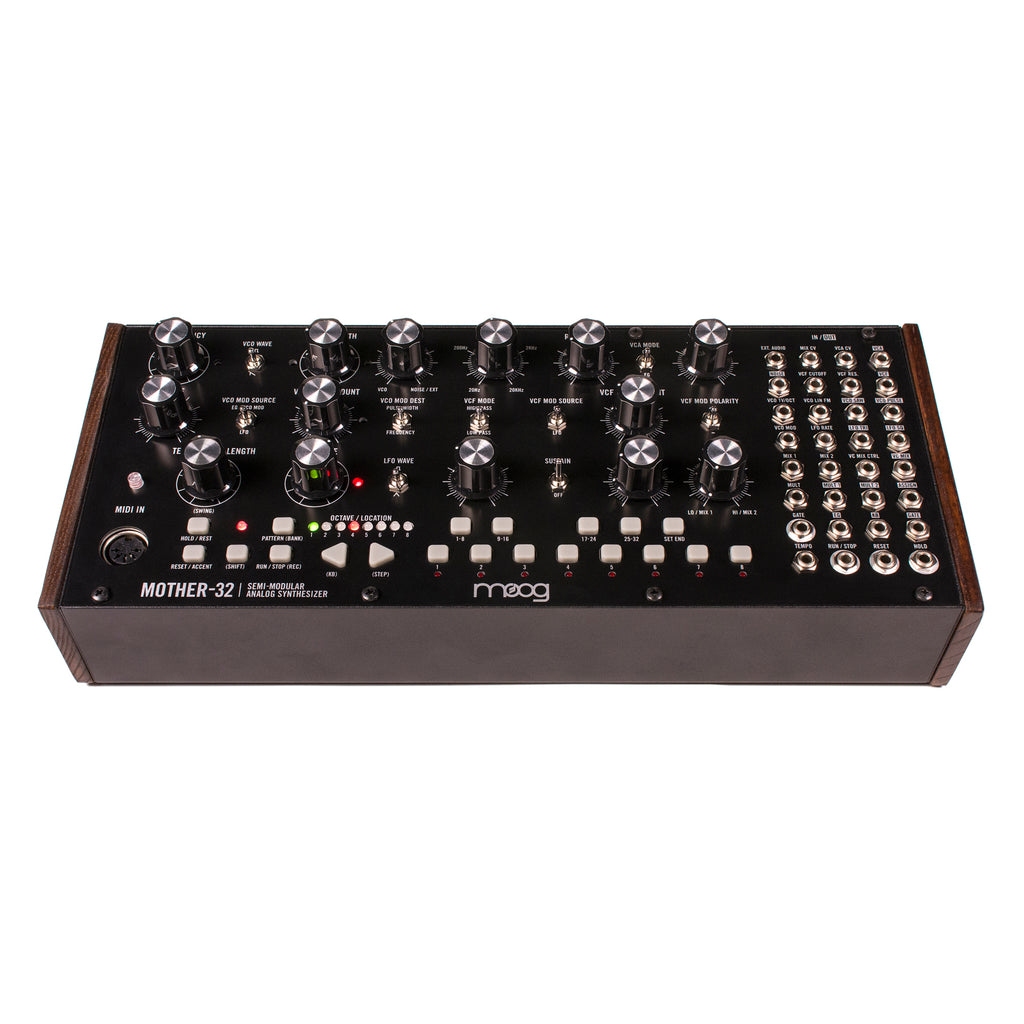

The Mother-32 is secured in an extruded aluminum enclosure with wood sides but can also easily be relocated to almost any Eurorack enclosure.
Technical Specifications
SOUND ENGINE: Analog
POLYPHONY: Monophonic
KEYPAD: 13 Note
STEP SEQUENCER: 32-Step with 64 Sequence Locations, Keyboard and Step Edit Modes
SEQUENCER PANEL CONTROLS: Tempo, Swing, Run/Stop, Hold, and Reset
SOUND SOURCES: 1 Oscillator With Pulse and Saw Waveforms, 1 White Noise Generator, 1 External Audio Input
OSCILLATOR RANGE: 8Hz-8KHz (16KHz max with LFO/CV)
FREQUENCY CONTROL: +/- 1 Octave
VOLTAGE CONTROLLED MIXER: +/- 5V Crossfades Between the Selected Oscillator Wave and External Audio Input (Normalled to White Noise)
FILTER: 20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder Filter
GLIDE: Assigned to Pitch (On/Off Per Step)
MODULATION SOURCES: LFO (TriangLe or Square), VCO Mod Input (Normalled to EG)
MODULATION DESTINATIONS: Pulse Width, Oscillator Frequency, Filter Cutoff ( Modulation Polarity)
LFO PANEL RATE: 1Hz to 350Hz (600Hz max)
ENVELOPE: Selectable AD (Multi-Trigger) / ASD (Single-Trigger)
VC MIXER: Voltage Controlled Crossfade/Mix Circuit for Mixing Two DC Coupled Signals
PATCHBAY: 32x 3.5mm Jacks
CV/GATE INPUTS:
External Audio, Mix CV, VCA CV, VCF Cutoff, VCF Resonance, VCO 1V/Octave, VCO Linear FM, VCO Modulation, LFO Rate, Mix 1, Mix 2, VC Mix Control, Mult, Gate, Tempo, Run/Stop, Reset and Hold
CV/GATE OUTPUTS: VCA, Noise, VCF, VCO Saw, VCO Pulse, LFO Triangle, LFO Square, VC Mix, Mult , Mult 2, Assign, EG, KB, Gate
ASSIGNABLE OUTPUT:
Multipurpose control output for selecting from 16 available functions: Sequencer Accent, Sequencer Clock, Sequencer Clock /2 Sequencer Clock /4, Decimated "Ramp”, Decimated "Saw”, Decimated "Triangle”, Stepped Random, STEP 1, MIDI Note On Velocity, MIDI Channel Aftertouch, MIDI Pitch Bend, MIDI CC1 Mod Wheel, MIDI CC2, MIDI CC4 and MIDI CC7
EXTERNAL AUDIO INPUT: 3.5mm
AUDIO OUTPUT: ¼” TS Line / ¼” TRS Headphones (Shared Output Jack)
MIDI IN: 5-Pin DIN input
MIDI CONTROL: Note, Gate, Pitch Bend (Mod Wheel, After Pressure, Velocity Available Via Assignable Output)
INCLUDED POWER SUPPLY: 110-250VAC, 50-60Hz, +12VDC 1A
POWER CONSUMPTION:2.8W
